*Colors you see here digitally may vary from the actual results. For a more accurate color representation, view a color swatch in the space in which your project resides.
*Temperature and time to be adjusted to accomplish proper curing of coating. This can be achieved using infrared, convection, or combination ovens.
- Good chemical resistance
- Thin film capabilities
Small Batch PPG Powder Coatings YELLOW PRIMER
Product Details
Product Overview
Product Name
Small Batch PPG Powder Coatings YELLOW PRIMER
Product SKU
PCF30124
Chemistry
Epoxy Polyester
Appearance
Smooth
Color
Yellow Primer
Description
PPG's Enviracryl™ and Envirocron® powder coatings are aesthetically pleasing, produce a durable uniform finish and can be custom formulated with finishes from high gloss to low gloss, and in a variety of textures.
PPG's "World Class" Hybrid Powder Coatings provide a combination of good physical and chemical resistance properties. This extensive line of Hybrid Powders is manufactured to meet the increasing requirement demands of the appliance, automotive and industrial markets. These sophisticated Hybrids are the solution to your smoothness, low-bake, durability and physical property requirements. An unsurpassed application development program enables consistently friendly use on a variety of substrates.
Product Characteristics
- Designed as a primer for PPG's ultradurable polyester powder topcoats
Technical Specifications
Product Properties
<1/8'' scribe creep
No blisters
<1/16'' scribe creep
No blisters
Application Details
Chemistry
Epoxy Polyester
Application Description
- Electrostatic Spray
- PCF30124 is a powder primer designed for use with PPG's ultradurable polyester powder topcoats. Prior to the powder topcoat application, PCF30124 can be either fused baked or fully cured. The recommended fused bake is a 2-10 minute bake cycle with a peak metal temperature of 225-400F using infrared heating or 250-425F peak metal temperature using forced air convection heating.
- Inadequate fusion of PCF30124 will affect the appearance of the powder topcoat, resulting in haze and lower gloss. In this situation, increasing the fuse bake temperature for PCF30124 is recommended. PCF30124 primer will be fully cured in the subsequent powder topcoat cure process for PPG's ultradurable polyester powder topcoats.
- Full curing of PCF30124 is always recommended for situations where the powder topcoat application might be delayed or not used.
- Recommended Minimum / Maximum primer DFT of 1.0 - 6.0 mils (25 - 150 microns). Minimum / Maximum primer/topcoat system DFT of 2.5 - 10.0 mils (64 - 254 microns).
- Coating can be applied with automatic and manual devices.
- Substrate should be correctly cleaned before use.
- Do not mix this product with other powder coatings.
- Color and finish influenced by film thickness: a good control of the film thickness will help the consistency of the aspect.
Surface Preparation
- Surface preparation should be chosen according to the type of substrate and required performance.
- The coater should test the suitability of the surface preparation before the application using appropriate test methods.
Curing Window

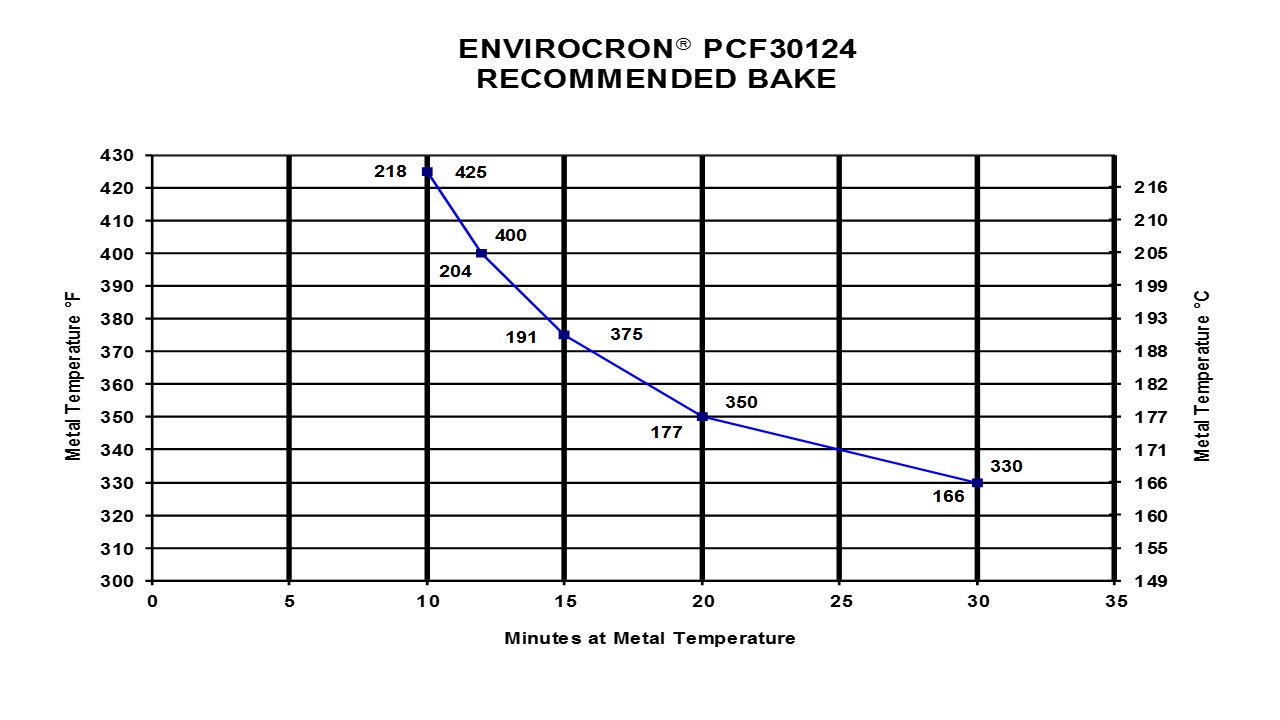

- See Cure Curve PCF-002A
- *Temperature and time to be adjusted to accomplish proper curing of coating. This can be achieved using infrared, convection, or combination ovens.
Test Conditions
Storage & Handling
Shelf Life
24 months at 80 °F maximum
Storage Conditions
Materials need to be stored in sealed plastic bags under dry and cool conditions. Do not expose to sunlight.
Environmental Aspects
For comprehensive Health, Safety, and Environmental advice, please refer to the relevant Safety Data Sheets, and information printed on the product label.
Warnings
⚠ WARNING: Cancer - www.P65Warnings.ca.gov.
Envirocron® Powder Coatings
PPG's ENVIROCRON® powder coatings are a comprehensive range of powder coatings engineered to deliver innovative solutions for every application. Envirocron products are specifically formulated without volatile organic compounds (VOCs) and offer excellent durability, making them the first choice of many OEMs, manufacturers and applicators around the world.
