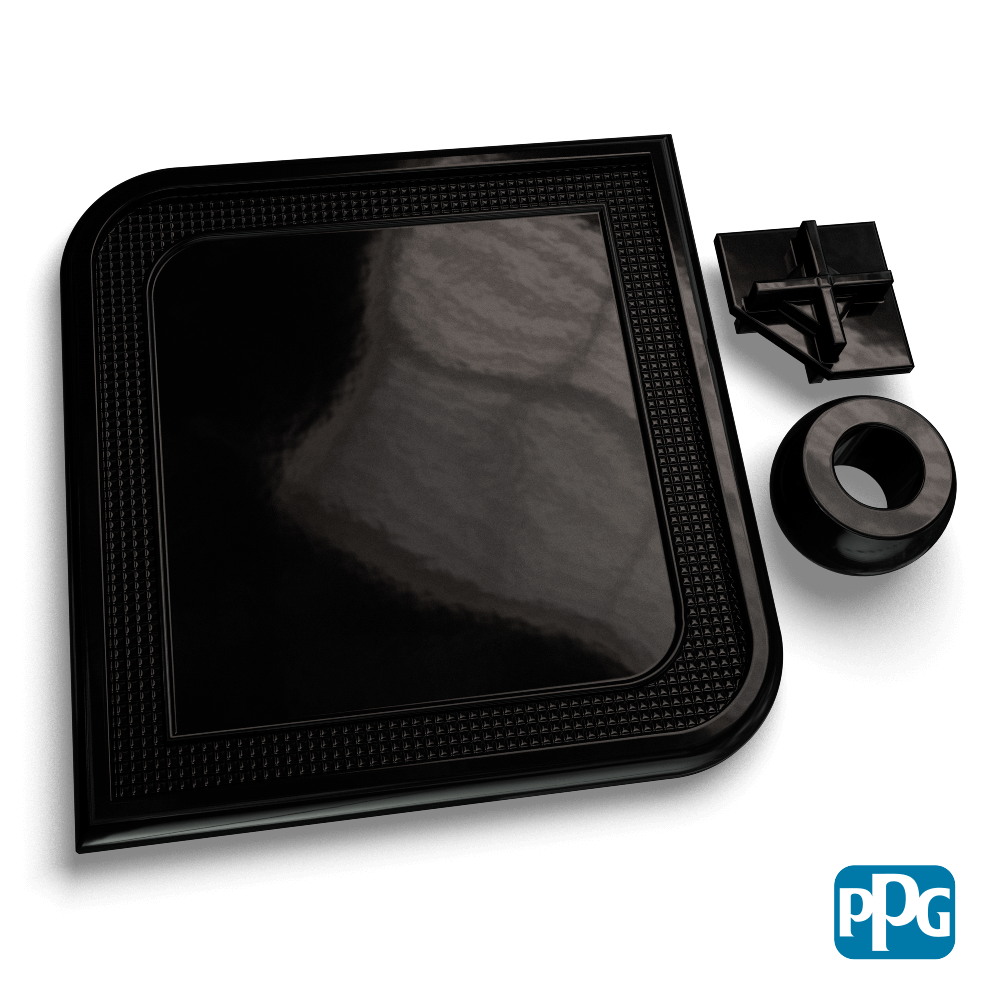

*Colors you see here digitally may vary from the actual results. For a more accurate color representation, view a color swatch in the space in which your project resides.
20 min @ 300 °F (149 °C)
10 min @ 325 °F (163 °C)
5 min @ 350 °F (177 °C)
*Temperature and time to be adjusted to accomplish proper curing of coating. This can be achieved using infrared, convection, or combination ovens.
- Automotive grade jetness
- Excellent exterior durability
- Fast and low cure capability
- Good chemical resistance
OGF RAL 9005 TRAILER BLACK AAMA 04 Powder Coating
Product Details
Product Overview
Product Name
OGF RAL 9005 TRAILER BLACK AAMA 04 Powder Coating
Product SKU
PCTT99259
Chemistry
Polyester TGIC Ultra Durable
Appearance
Smooth
Color
RAL 9005 OGF Trailer Black
Description
PPG's Enviracryl™ and Envirocron™ powder coatings are aesthetically pleasing, produce a durable uniform finish and can be custom formulated with finishes from high gloss to low gloss, and in a variety of textures.
PPG's "World Class" Ultradurable Polyester Powder Coatings provide a combination of good physical and chemical resistance properties with excellent resistance to outdoor weathering. This extensive line of Polyester Powders is manufactured to meet the increasing requirement demands of the appliance and industrial markets. These sophisticated Polyesters are the solution to your smoothness, low-bake, durability and physical property requirements. An unsurpassed application development program enables consistently friendly use on a variety of substrates.
Product Characteristics
- High flow but rheological control to avoid drips
- World class abrasion from XMR (Extreme Mar Resistance) technology
- Outgas friendly especially suited for shot blasted and cast metals
- Industry leading transfer efficiency from enhanced manufacturing control
Technical Specifications
Product Properties
Wet: 100% (5B Pass)
Boiling Water: 100% (5B Pass)
<1/8'' scribe creep
No blisters
Application Details
Chemistry
Polyester TGIC Ultra Durable
Application Description
- Electrostatic Spray
- Coating can be applied with automatic and manual devices.
- Substrate should be correctly cleaned before use.
- Do not mix this product with other powder coatings.
- Color and finish influenced by film thickness: a good control of the film thickness will help the consistency of the aspect.
Surface Preparation
- Surface preparation should be chosen according to the type of substrate and required performance.
- The coater should test the suitability of the surface preparation before the application using appropriate test methods.
Curing Window

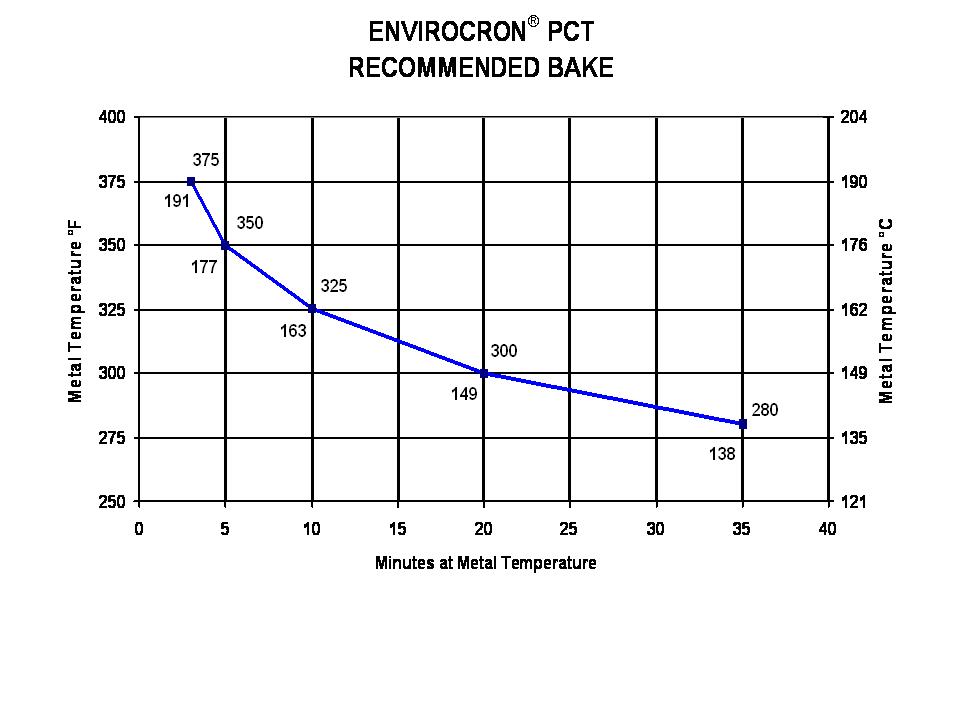

- See Cure Curve PCT-043
- 20 min @ 300 °F (149 °C)
- 10 min @ 325 °F (163 °C)
- 5 min @ 350 °F (177 °C)
- *Temperature and time to be adjusted to accomplish proper curing of coating. This can be achieved using infrared, convection, or combination ovens.
Test Conditions
Storage & Handling
Shelf Life
24 months at 77 °F maximum
Storage Conditions
Materials need to be stored in sealed plastic bags under dry and cool conditions. Do not expose to sunlight.
Environmental Aspects
For comprehensive Health, Safety, and Environmental advice, please refer to the relevant Safety Data Sheets, and information printed on the product label.
Warnings
⚠ WARNING: Cancer - www.P65Warnings.ca.gov.
Envirocron® Powder Coatings
PPG's ENVIROCRON® powder coatings are a comprehensive range of powder coatings engineered to deliver innovative solutions for every application. Envirocron products are specifically formulated without volatile organic compounds (VOCs) and offer excellent durability, making them the first choice of many OEMs, manufacturers and applicators around the world.
