*Colors you see here digitally may vary from the actual results. For a more accurate color representation, view a color swatch in the space in which your project resides.
20 min @ 350 °F (177 °C)
15 min @ 375 °F (191 °C)
12 min @ 400 °F (204 °C)
*Temperature and time to be adjusted to accomplish proper curing of coating. This can be achieved using infrared, convection, or combination ovens.
- Available in a wide range of colors and glosses
- Good chemical resistance
- Thin film capabilities
PRIMERON EDGE GRAY PRIMER
Product Details
Product Overview
Product Name
PRIMERON EDGE GRAY PRIMER
Product SKU
PCF70283
Chemistry
Epoxy Polyester
Appearance
Smooth
Color
Gray Primer
Description
PPG's Primeron powder coatings are durable primers with exceptional corrosion protection for a variety of market segments.
PPG's "World Class" Primer Powder Coatings provide a combination of good physical and chemical resistance properties. This specialized line of zinc-rich epoxy, epoxy, and epoxy-polyester primers are manufactured to meet the increasing requirement demands of the automotive and industrial markets. These sophisticated products are the solution to your corrosion, durability, and physical property requirements. An unsurpassed application development program enables consistently friendly use on a variety of substrates.
Technical Specifications
Product Properties
<1/8'' scribe creep
No blisters
<1/16'' scribe creep
No blisters
Application Details
Chemistry
Epoxy Polyester
Application Description
- Electrostatic Spray
- Coating can be applied with automatic and manual devices.
- Substrate should be correctly cleaned before use.
- Do not mix this product with other powder coatings.
- Color and finish influenced by film thickness: a good control of the film thickness will help the consistency of the aspect.
Surface Preparation
- Surface preparation should be chosen according to the type of substrate and required performance.
- The coater should test the suitability of the surface preparation before the application using appropriate test methods.
Curing Window

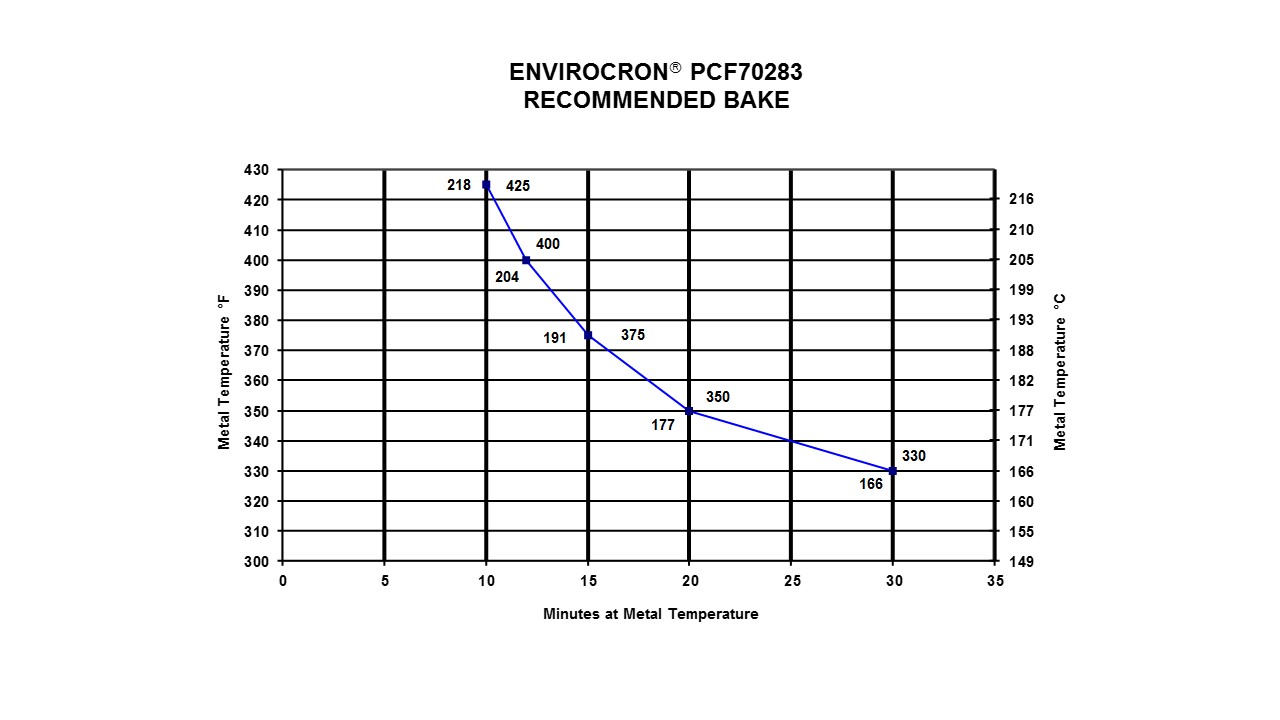

- See Cure Curve PCF-002B
- 20 min @ 350 °F (177 °C)
- 15 min @ 375 °F (191 °C)
- 12 min @ 400 °F (204 °C)
- *Temperature and time to be adjusted to accomplish proper curing of coating. This can be achieved using infrared, convection, or combination ovens.
Test Conditions
Storage & Handling
Shelf Life
24 months at 80 °F maximum
Storage Conditions
Materials need to be stored in sealed plastic bags under dry and cool conditions. Do not expose to sunlight.
Environmental Aspects
For comprehensive Health, Safety, and Environmental advice, please refer to the relevant Safety Data Sheets, and information printed on the product label.
Warnings
⚠ WARNING: Cancer - www.P65Warnings.ca.gov.
Envirocron® Powder Coatings
PPG's ENVIROCRON® powder coatings are a comprehensive range of powder coatings engineered to deliver innovative solutions for every application. Envirocron products are specifically formulated without volatile organic compounds (VOCs) and offer excellent durability, making them the first choice of many OEMs, manufacturers and applicators around the world.
