*Colors you see here digitally may vary from the actual results. For a more accurate color representation, view a color swatch in the space in which your project resides.
*Temperature and time to be adjusted to accomplish proper curing of coating. This can be achieved using infrared, convection, or combination ovens.
- Available in a wide range of colors and glosses
- Good chemical resistance

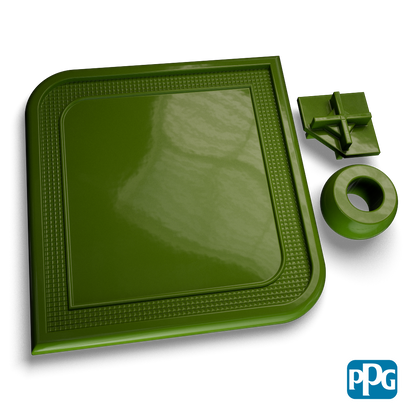

HIGH EDGE GREEN
Product Details
Product Overview
Product Name
HIGH EDGE GREEN
Product SKU
PCT49151
Chemistry
Polyester TGIC Ultra Durable
Appearance
Smooth
Color
HE GREEN
Description

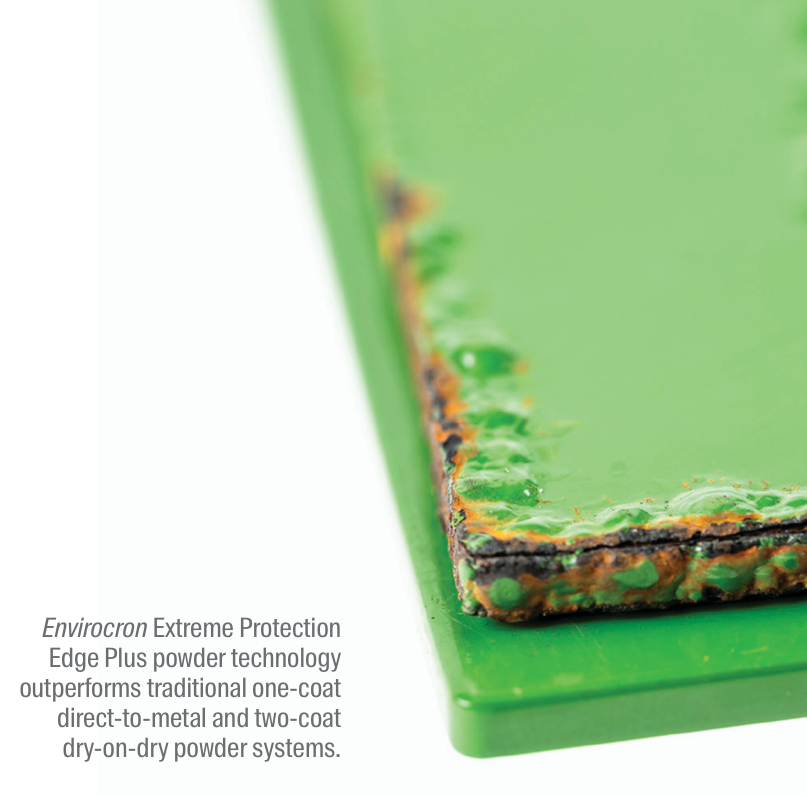

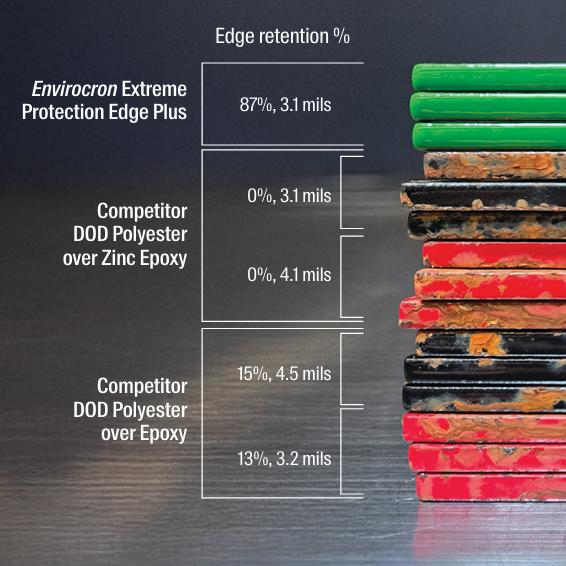

PPG Envirocron® Extreme Protection edge powder coatings provide extreme corrosion protection in one coat. This unique technology is specially formulated to cover sharp edges created during metal fabrication, offering superior corrosion protection over standard one-coat and two-coat powder systems. This one-coat edge solution translates to significant cost savings in material, labor, utilities and time. In addition to long-term performance, PPG Envirocron™ Extreme Protection edge powder coatings offer outstanding transfer efficiency and ease of application.
PPG Envirocron™ Extreme Protection edge powder coatings are a new addition to PPG's world-class polyester powder coatings, providing a combination of superior physical and chemical resistant properties combined with excellent outdoor weathering properties. The PPG Envirocron™ line of polyester powder coatings is manufactured to meet the increasing requirement demands of the industrial market. An unsurpassed powder application development program ensures that all PPG powders are user friendly and consistent over a variety of substrates.
Technical Specifications
Product Properties
<1/8'' scribe creep
No blisters
<1/16'' scribe creep
No blisters
Application Details
Chemistry
Polyester TGIC Ultra Durable
Application Description
- Electrostatic Spray
- Voltages may need to be lowered to limit back ionization and realize the full benefits of this coating. Please see the Field Application Guideline for more details.
- Suggested parameters: Kv 35 – 65 – Micro amp (µa) 5 – 20
- Distance: 8 inches – 12 inches
- Coating can be applied with automatic and manual devices.
- Substrate should be correctly cleaned before use.
- Do not mix this product with other powder coatings.
- Color and finish influenced by film thickness: a good control of the film thickness will help the consistency of the aspect
Surface Preparation
- Surface preparation should be chosen according to the type of substrate and required performance.
- The coater should test the suitability of the surface preparation before the application using appropriate test methods.
Curing Window
- See Cure Curve PCT-001
*Temperature and time to be adjusted to accomplish proper curing of coating. This can be achieved using infrared, convection, or combination ovens.
Test Conditions
Storage & Handling
Shelf Life
24 months at 80 °F maximum
Storage Conditions
Materials need to be stored in sealed plastic bags under dry and cool conditions. Do not expose to sunlight.
Environmental Aspects
For comprehensive Health, Safety, and Environmental advice, please refer to the relevant Safety Data Sheets, and information printed on the product label.
Warnings
⚠ WARNING: Cancer - www.P65Warnings.ca.gov.
Envirocron® Powder Coatings
PPG's ENVIROCRON® powder coatings are a comprehensive range of powder coatings engineered to deliver innovative solutions for every application. Envirocron products are specifically formulated without volatile organic compounds (VOCs) and offer excellent durability, making them the first choice of many OEMs, manufacturers and applicators around the world.
