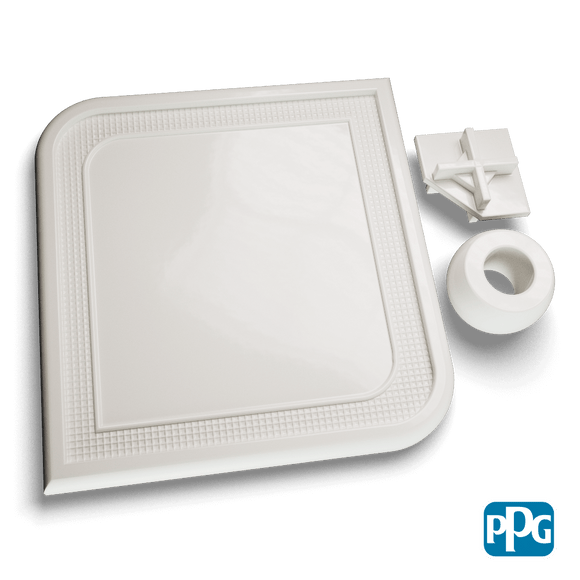

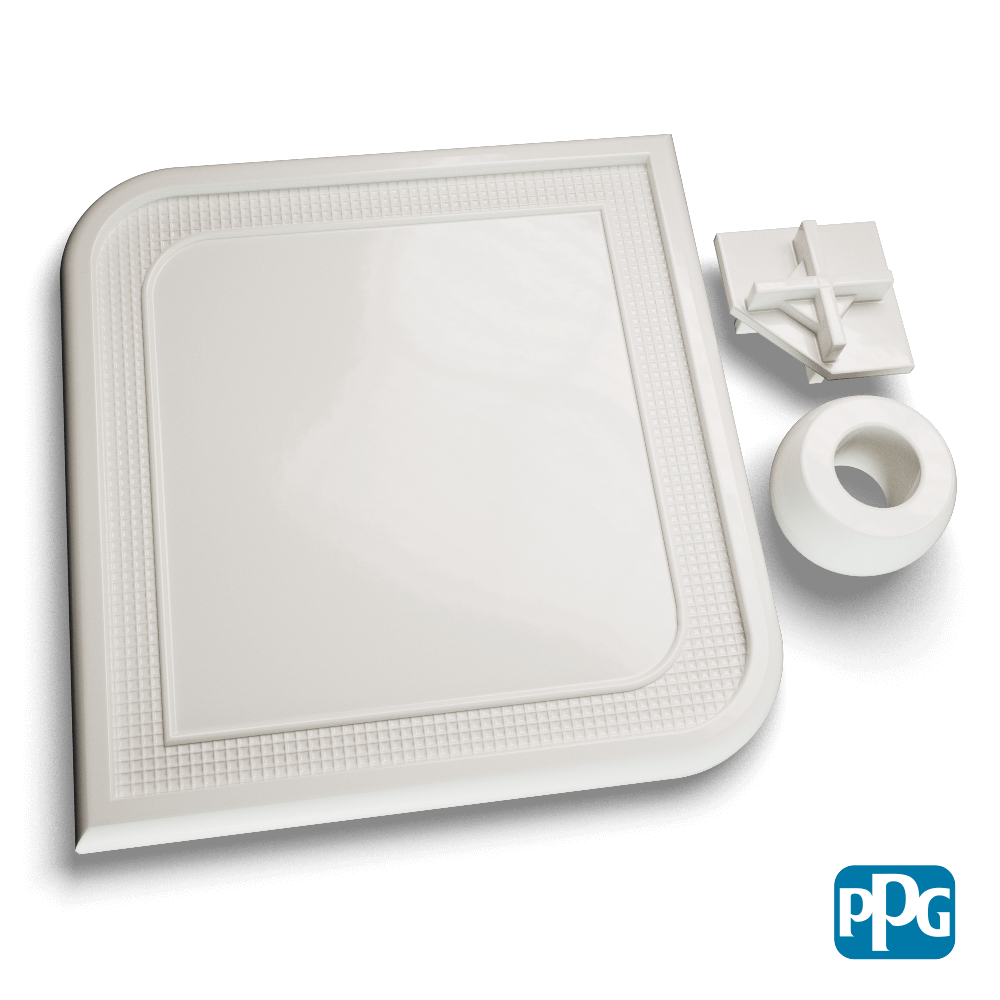

HIGH EDGE RAL 9003 WHITE

Product Name

HIGH EDGE RAL 9003 WHITE

Product SKU

PCT89140

Chemistry

Polyester TGIC Ultra Durable

Appearance

Smooth

Color

HE RAL 9003 WHITE

Description

PPG Envirocron® Extreme Protection Edge Plus powder coatings provide extreme corrosion protection in one coat. This unique technology is specially formulated to cover sharp edges created during metal fabrication, offering superior corrosion protection over standard one-coat and two-coat powder systems. This one-coat edge solution translates to significant cost savings in material, labor, utilities and time. In addition to long-term performance, PPG Envirocron™ Extreme Protection Edge Plus powder coatings offer outstanding transfer efficiency and ease of application.
     PPG Envirocron™ Extreme Protection Edge Plus powder coatings are a new addition to PPG's world-class polyester powder coatings, providing a combination of superior physical and chemical resistant properties combined with excellent outdoor weathering properties. The PPG Envirocron™ line of polyester powder coatings is manufactured to meet the increasing requirement demands of the industrial market. An unsurpassed powder application development program ensures that all PPG powders are user friendly and consistent over a variety of substrates.

Product Properties

Chemistry

Polyester TGIC Ultra Durable

Application Description

• Electrostatic Spray
• Coating can be applied with automatic and manual devices.
• Substrate should be correctly cleaned before use.
• Do not mix this product with other powder coatings.
• Color and finish influenced by film thickness: a good control of the film thickness will help the consistency of the aspect.
• Please refer to the official application guide for more information.

Surface Preparation

• Surface preparation should be chosen according to the type of substrate and required performance.
• The coater should test the suitability of the surface preparation before the application using appropriate test methods.

Curing Window

• See Cure Curve PCT-001
•  20 min @ 350 °F (177 °C)
•  15 min @ 375 °F (191 °C)
•  10 min @ 400 °F (204 °C)
• *Temperature and time to be adjusted to accomplish proper curing of coating. This can be achieved using infrared, convection, or combination ovens.

Test Conditions

Shelf Life

24 months at 77 °F maximum

Storage Conditions

Materials need to be stored in sealed plastic bags under dry and cool conditions. Do not expose to sunlight.

Environmental Aspects

For comprehensive Health, Safety, and Environmental advice, please refer to the relevant Safety Data Sheets, and information printed on the product label.

⚠ WARNING: Cancer - www.P65Warnings.ca.gov.
